High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

SMARTWEIGH INSTRUMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

  • 1
  • 2
  • 3

Brand Name : SMARTWEIGH

Model Number : SCSA8001

Certification : ISO/CE/SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,L/C,Western Union,MoneyGram

Supply Ability : 500 Sets/Month

Delivery Time : 3-8 weeks

Type : Weighbridge Scale

Capacity : 30T-250T

Width : 3m/3.2m/3.4m/Customized

Weighing Accuracy : OIML (Grade: III)

Customization : Available

CLC : Over 30% Of Total Capacity

Contact Now

High-precision Weighbridge Scale Analog Digital Weighbridge For Truck Weighing


Truck scales in this category are designed for trucks that are used in normal highway transportation. The modular design of these products allow for customization to

suit your exact needs. Choose from a wide range of steel and concrete deck truck scale designs that use our High accuracy load cell technology to provide proven

performance and exceptional durability.


Main Features:


1. The modular design of these products allow for customization to suit your exact needs.

2. Designed with a modular system for easy assembly, efficient shipping and adjustment of size.

3. Optional type of galvanized structure provide full protection from rust and corrosion, reducing maintenance costs.

4. Explosion proof types suitable for working in hazardous areas available upon request.

5. Proven design of the bridge type U-type welded ribs help direct the pressure of a heavy load away from areas.

6. Automatic professional welding along the seam of each rib to the deck ensure lasting strength.

7. High performance load cells, good accuracy and reliability make clients maximum income.

8. Divide into several panels, easy to move platforms and container transportation.

9. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

10. High quality of anti-rust zinc epoxy paint for three coats ensure to expand the scales span life .



—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO.,LTD.



Truck Weighbridge Specification

Procuct Name

Robust And Reliable Weighbridge Systems Weighing Analog Electronic Truck Weighbridge

Safe Overload

130%

Surface Finish

Ball blasting and Anti-rust epoxy paint

Material

Q235B or Q345B steel

Top Plate Thickness

10mm/ 12mm/ 14mm

Color

Customized

Keyword

Pitless Truck Scale Weighbridge

Accuracy

OIML C3

Platform Size

3Mx6M/8M/9M/10M/12M/15M.../Customized

Surface

Checkered/Smooth

Beam/ Ribs No

6 pcs

Power Supply

AC 220V, DC 12V Battery Backup

Load Cell Type

Single-point load cell or Multi-point load cell
Protection Class
IP65-68
Calibration
Digital calibration with built-in calibration weight
Normal Working Temp
-10°C to +40°C
Type
Truck Scale Weighbridge


—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO.,LTD.


High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

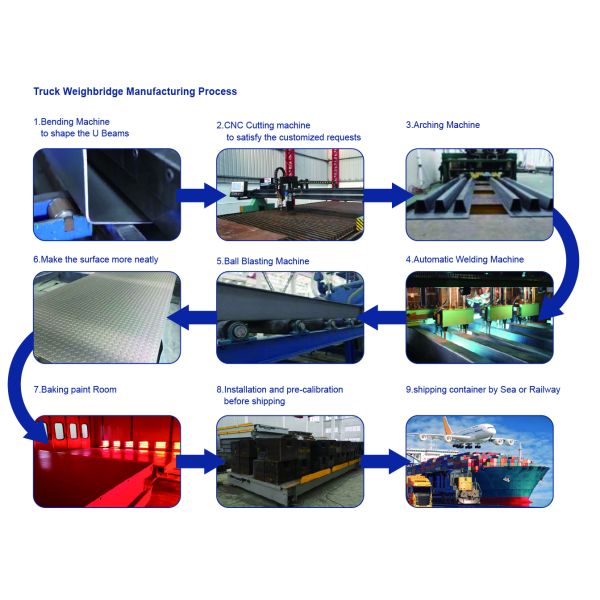

—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO.,LTD.



High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T


—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO.,LTD.

High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T


Digital Weighbridge Scale Specification

Model
SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Size

Capacity


30T

40T 50T 60T 80T 100T 120T 150T

Accuracy

10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg

3.0×6M







3.0×8M







3.0×9M







3.0×10M







3.0×12M





3.0×15M





3.0×16M




3.0×18M





3.0×20M









3.0×24M









3.0×30M










Note: The road weighbridge scale deck width 3m/3.2m/3.4m/4m is optional.High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

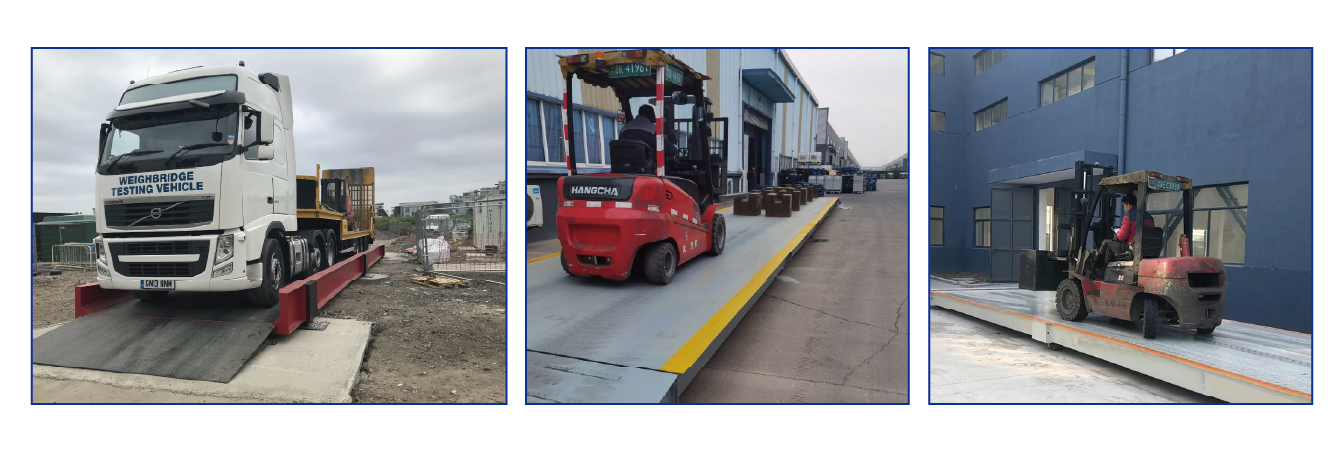

—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO.,LTD.

High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO.,LTD.

High Precision Weighbridge Scale Analog Digital Truck Weighing Scale 30T - 250T

Delivery:We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
